2001-2005 Mazda Miata Mega Squirt NB2 MS3Pro PnP Plug and Play
New
2001-2005 Mazda Miata
NB2 MS3Pro PnP Plug and Play
2001-2005 NB2 USDM Mazda Miata with manual transmission, *non-Mazdaspeed
This MS3Pro based Miata 2001-2005 MS3Pro PnP takes plug and play engine management to the next level! Easy to use and install!
2001-2005 Miata (Part# MSPNPPro-MM0105) MS3Pro PnP Features:
Fully Plug and Play Installation – No wiring required for basic functionality.
Average install time is under 1 hour!
Base map is pre-loaded to help your engine start on the first turn of the key
Real time tuning and data logging with a laptop connection
8 GB internal data logging with built in SD card
Supports most aftermarket wideband sensors
Fully Tunable Engine Control!
16×16 Fuel Tables allow high resolution tuning
16×16 Ignition Tables
Multiple Acceleration enrichment strategies
Closed Loop Idle Speed Control
Air Conditioner Control
4 sequential fuel injector channels with individual trim tables
Onboard peak and hold drivers support both high and low impedance injectors – No external ballast resistor is needed!
Allows removal of stock airflow meter
Mazda Miata 2001-2005 MS3Pro PnP Advanced Feature Set (Included!)
12×12 Air Fuel Ratio Target Tables for use with wide band O2 sensor for precise tuning and table trim.
VVT support if swapping to a later VVT motor
Programmable voltage regulator control for NB alternator swaps
Multiple traction control strategies
Built-in 3-step rev limiter / launch control with flat shift and burnout rev limiter
Real time barometric correction
Internal 4-bar MAP sensor reads up to 44PSI of boost
Overboost protection
Closed loop boost control (Requires EBC solenoid kit – stock boost control solenoid does not allow adjusting boost level)
Rally style anti lag
Water injection control – on/off or variable
Knock sensor input with adjustable sensitivity, crank angle windowing, and more
Table switching input. Change fuel and spark maps on the fly for different fuels, nitrous activation, etc.
Input for flex fuel sensor – switch between E85 and gasoline on the fly!
CANBus connector allows interconnection of other MegaSquirt-compatible devices for additional functions (EGT Input, Automatic Transmission Controller, Additional Sensors…..the possibilities are limitless!
What you get in the box:

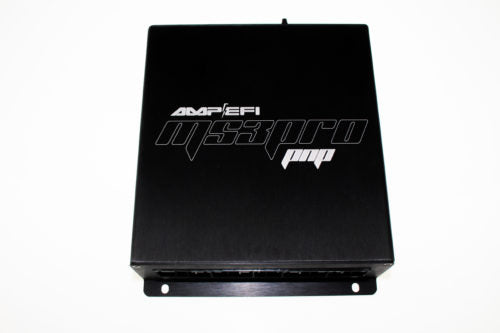

Mazda Miata 2001-2005 MS3Pro PnP ECU
MSPNP RS232 serial tuning cable, 6′ (USB adapter sold separately, if needed)
Tuning Software and Documentation on USB memory stick
6′ Vacuum Hose for MAP Signal and ‘T’ fitting
Four Screws for ECU mounting
Registered version of TunerStudio and MegaLog viewer included
Make sure to use our Custom TunerStudio Dashboard, designed specifically to help make tuning your new build intuitive and easy!
This MS3Pro PNP (aka MSPNP Pro) for the 2001-2005 Mazda Miata is a full Standalone Engine Management System giving you control of your fuel, ignition advance, rev limiters, turbo boost, engine safeties, and lots more. Onboard datalogging and auto-tune capabilities give you POWERFUL tools to dial your engines performance in. This Race Ready ECU installs in about an hour, and takes Plug and Play engine management to the next level! What are you waiting for?
